AIM
AiM-XS3GPFHD120L200 - Camera, AiM Smartycam 3 GP, 120 Degree, Bullet Cam System
$1,899.00
We'll confirm price, lead time, and shipping.
Genuine Radical partsAuthorized dealer for OEM and Crown Concepts parts.
US shippingFrom our Arizona race shop to your paddock.
Fitment supportTalk to our team if you're unsure which part you need.
Product details

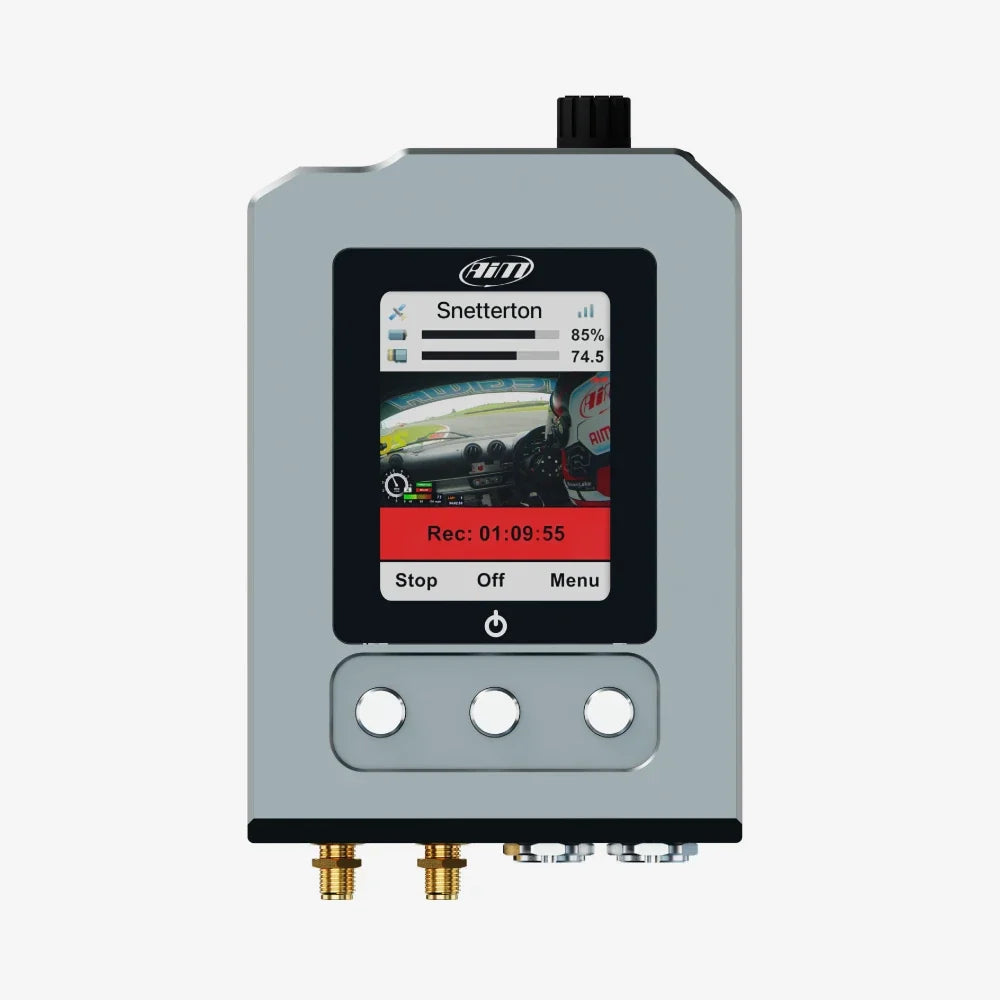

The AiM SmartyCam 3 GP is a compact on-board camera with a remote bullet cam, recording full HD video and connecting to the car's AiM logger or ECU over CAN. This kit (AiM XS3GPFHD120L200) carries the widest lens AiM offers, 120 degrees, and includes the SmartyCam 3 GP module, the 120 degree bullet cam, a 2 m bullet cam cable, a CAN expansion cable, a USB 2.0 cable and a battery charger.
Specifications
- Part Number: AiM-XS3GPFHD120L200
- Manufacturer: AIM
- Fitment: Universal
- Kit contents: SmartyCam 3 GP module, 120° bullet cam, 2 m bullet cam cable, CAN expansion cable, USB 2.0 Type A cable, battery charger with AC adapter
- Video: H.264, 1920 x 1080 at 60 fps
- Sensor: CMOS, global shutter
- Display: 2.4 in, 240 x 320
- Storage: SD card up to 2 TB
- Video out: 3G-SDI
- Power: 9-15 V external, internal rechargeable lithium battery
- Waterproofing: IP65
- Main unit: 120.8 x 80.2 x 30.9 mm, 320 g
- Bullet cam: 24 mm dia x 46 mm (120° lens), 45 g
- Operating temperature: -10°C to +50°C
- Category: Electrical System
Specifications from AiM SmartyCam 3 GP technical sheet.
Competition-use notice
Sold for motorsport and off-highway competition use only. Not legal for sale or use on public roads, and not covered by any highway-use warranty. Fitment and suitability are the purchaser's responsibility.
