Radium Engineering
T14-20-0180 - Venturi Pump, Kit, Radium Engineering
$81.86
Genuine Radical partsAuthorized dealer for OEM and Crown Concepts parts.
US shippingFrom our Arizona race shop to your paddock.
Fitment supportTalk to our team if you're unsure which part you need.
Product details

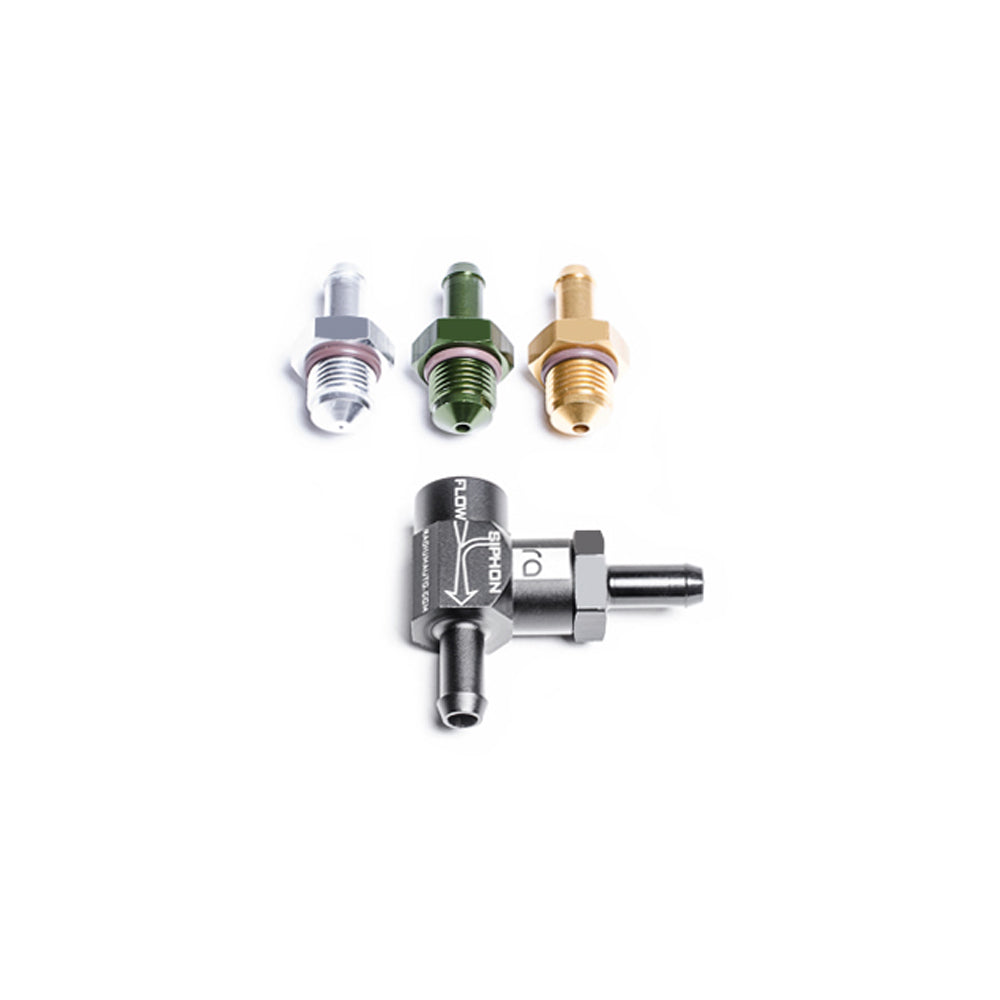

Radium Engineering's venturi jet pump (Radium 20-0180) moves fuel from one side of a tank to the other: fuel flowing through the venturi creates vacuum at the perpendicular port. Factory jet pumps are sized for stock pump flow and become a restriction, and a cause of high fuel pressure, once a higher-flow pump is fitted. Radium's version is built for high-flow aftermarket pumps and comes with three interchangeable orifices, calculated and vacuum-tested across pump combinations.
Specifications
- Part Number: T14-20-0180
- Manufacturer: Radium Engineering
- Fitment: Universal
- Radium part: 20-0180
- Housing: Machined aluminium, anodised, laser engraved
- Orifices: 3, interchangeable
- Hose barbs: 3 x 8.5 mm, for 5/16 in or 3/8 in ID hose
- Siphon port: 6AN ORB (9/16-18 O-ring) female
- Category: Powertrain
Specifications from Radium Engineering.
Competition-use notice
Sold for motorsport and off-highway competition use only. Not legal for sale or use on public roads, and not covered by any highway-use warranty. Fitment and suitability are the purchaser's responsibility.
