AIM
XS3DB8484L2L200 - Aim Sport Smarty Can Dual Data Logger Camera System, 84 Degree Lens
$3,000.00
We'll confirm price, lead time, and shipping.
Genuine Radical partsAuthorized dealer for OEM and Crown Concepts parts.
US shippingFrom our Arizona race shop to your paddock.
Fitment supportTalk to our team if you're unsure which part you need.
Product details

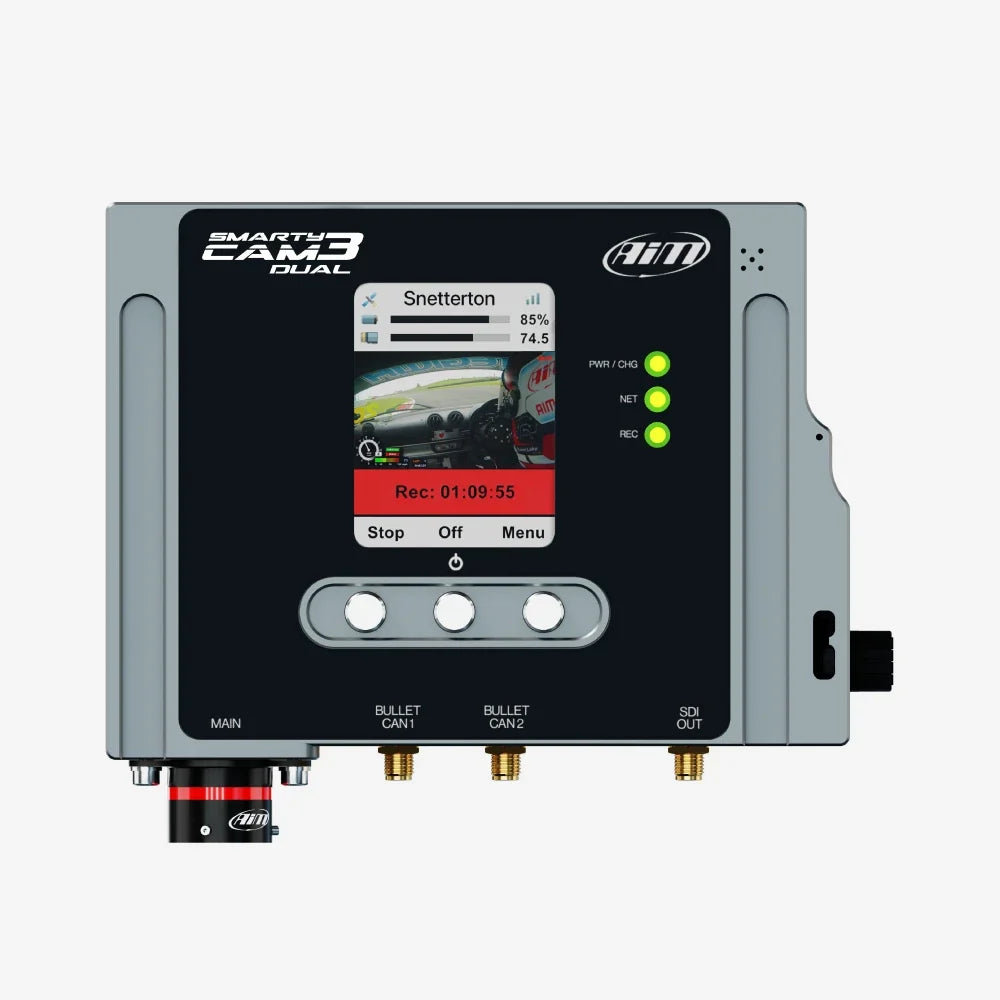

The AiM SmartyCam 3 Dual records two bullet cameras at once and connects to the car's AiM logger or ECU over CAN. This kit (AiM XS3DB8484L2L200) is the 84 degree version: the SmartyCam 3 Dual module, two 84 degree bullet cams, two 2 m bullet cam cables and the standard plus Ethernet harness.
Specifications
- Part Number: XS3DB8484L2L200
- Manufacturer: AIM
- Fitment: Universal
- Kit contents: SmartyCam 3 Dual module, 2 x 84° bullet cams, 2 x 2 m bullet cam cables, standard + Ethernet harness
- Video: H.264, 1920 x 1080 at 60 fps
- Sensor: CMOS, global shutter
- Display: 2.4 in, 240 x 320
- Storage: SD card up to 2 TB
- Video out: 3G-SDI
- Power: 9-15 V external, internal rechargeable lithium battery
- Waterproofing: IP65
- Main unit: 154.4 x 109.6 x 42 mm, 800 g
- Bullet cam: 24 mm dia x 41 mm, 45 g
- Operating temperature: -10°C to +50°C
- Category: Electrical System
Specifications from AiM SmartyCam 3 Dual technical sheet.
Competition-use notice
Sold for motorsport and off-highway competition use only. Not legal for sale or use on public roads, and not covered by any highway-use warranty. Fitment and suitability are the purchaser's responsibility.
